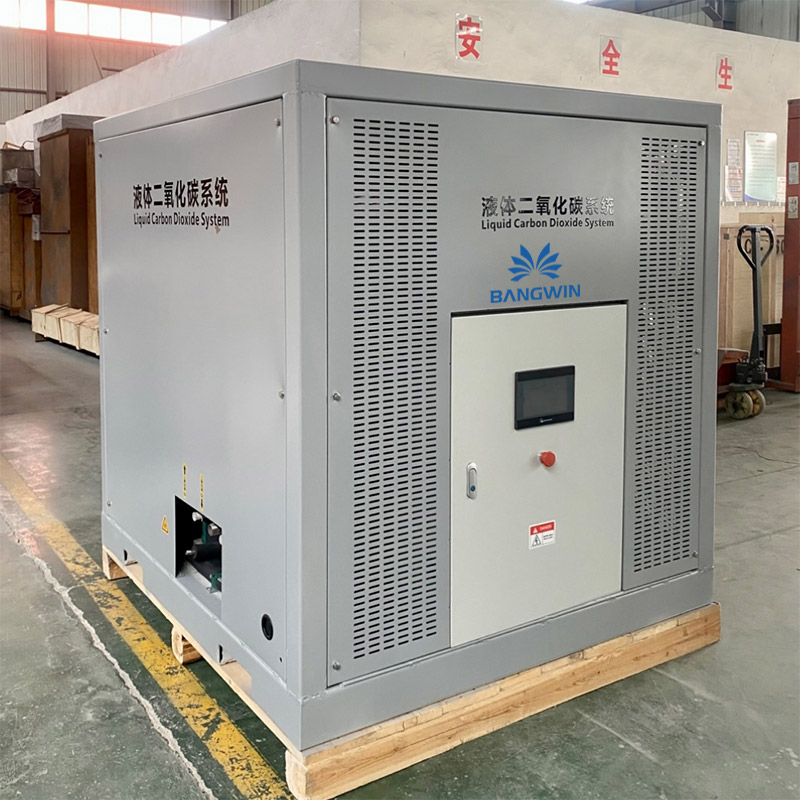

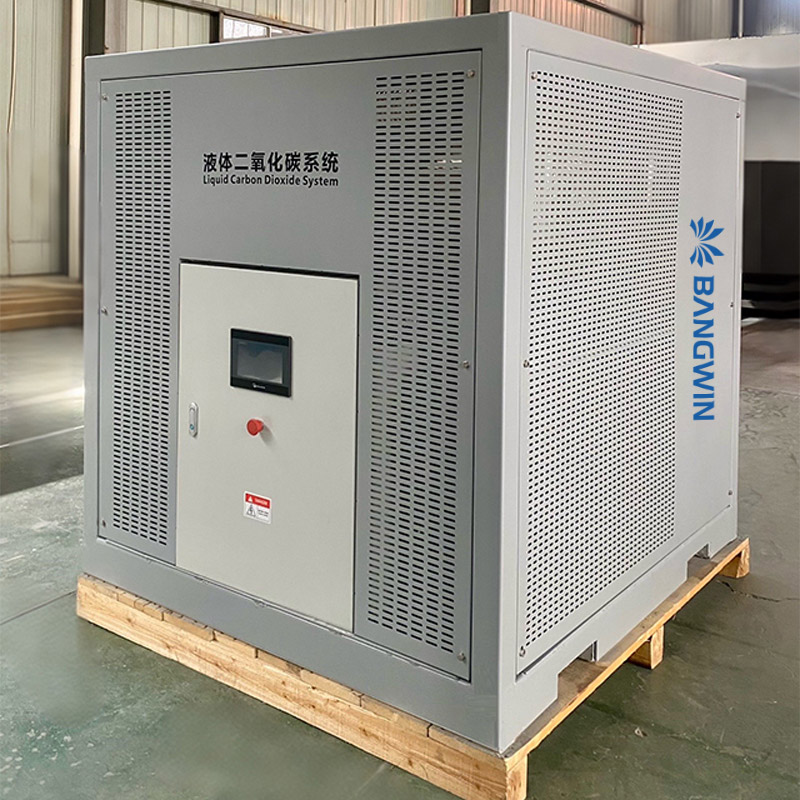

100Kg/H 300Kg/H 500Kg/H Liquid Carbon Dioxide System For Carbonated Beverages

Our process flow 1,Methane + pure oxygen burn to generate CO2 and H2，O22,Then remove water3,Then lower the temperature of CO2 for preliminary liquefaction4,Then distill to obtain high-purity liquid CO25,Then store in liquid CO2 storage tank for future use

Our process flow 1,Methane + pure oxygen burn to generate CO2 and H2，O22,Then remove water3,Then lower the temperature of CO2 for preliminary liquefaction4,Then distill to obtain high-purity liquid CO25,Then store in liquid CO2 storage tank for future use

BANGWIN Liquid nitrogen generator (liquid nitrogen machine) equipment consists of nitrogen generator(built-in or external), refrigeration equipment lt consists of three parts: equipment (gas liquefaction equipment) and Dewar tank The whole machine has one-button startup and automaticreplenishment.Liquid function, the equipment automatically starts when the liquid nitrogen inthe liquid nitrogen tank is lower than the set liquid level. Liquid nitrogen machine The manufacturing adopts the mixed working fluid throttling refrigeration principle to gradually cool nitrogenfrom ambient temperature to nitrogen.The saturated condensation temperature of gas lique.faction, the lowest cooling temperature of the refrigerator can reach -196°C, and the systemwill The liquefied liquid nitrogen in the cold evaporator is transported to the liquid nitrogen tankfor storage to obtain liquid nitrogen, and the equipment automatically detects it.Liquid nitrogenlevel in the Dewar tank.

By efficiently separating the different components of the gas, small air separation equipment enables the extraction of high-purity gases, ensuring their suitability for a wide range of industrial, medical, and research applications.

The liquid nitrogen generator (liquid nitrogen machine) is composed of three parts: nitrogen generator (built-in or external), refrigeration equipment (gas liquefaction equipment) and Dewar tank. The whole machine has the function of automatic liquid replenishment with one key, and the equipment starts automatically when the liquid nitrogen in the liquid nitrogen tank is lower than the set liquid level. Liquid nitrogen machine manufacturing adopts the principle of mixed mass throttling refrigeration, cooling nitrogen from the ambient temperature to the saturation condensing temperature of nitrogen liquefaction step by step, the lowest temperature of refrigeration machine refrigeration can be up to -196 °, the liquid nitrogen liquefied in the refrigeration evaporator is transported to the liquid nitrogen tank to save the liquid nitrogen to obtain liquid nitrogen, the equipment automatically detects the liquid nitrogen level in the Dewar tank, and fully automatic control of the operation of the equipment.

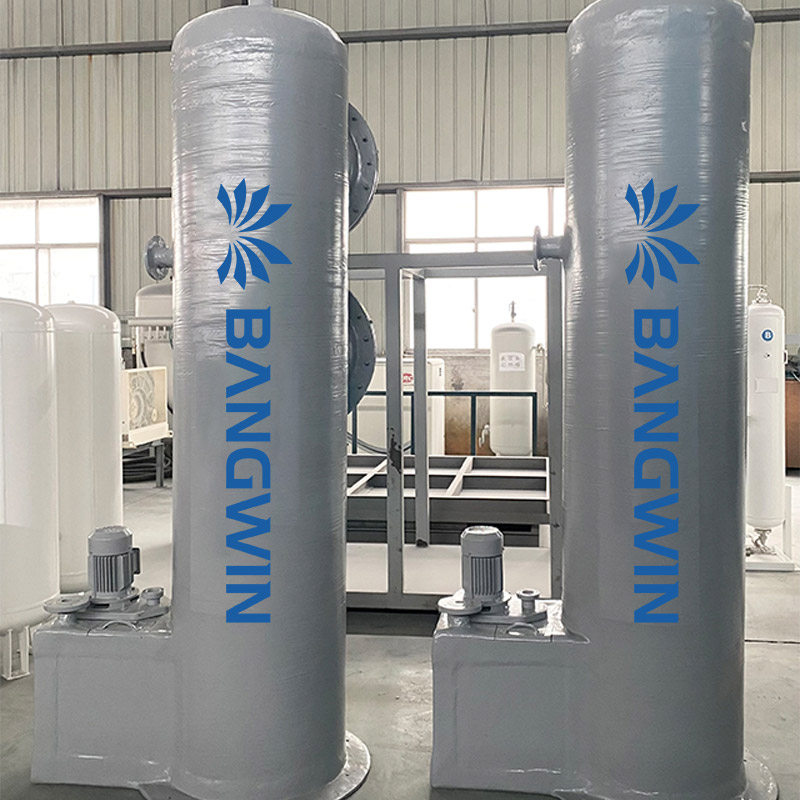

The air enters the air compressor after removing dust and mechanical impurities through the air filter, compressing to the required pressure, and outputting clean compressed air after strict purification treatment of oil, water and dust removal, with the purpose of ensuring the service life of the molecular sieve in the adsorption tower. There are two adsorption towers with carbon molecular sieves, one tower works while the other tower is decompressed and desorbed. The clean air enters the working adsorption tower, passing through the molecular sieve when oxygen, carbon dioxide and water are adsorbed by it, the gas flowing to the exit end is nitrogen and trace amounts of argon and oxygen. Another tower (desorption tower) so that the adsorbed oxygen, carbon dioxide and water from the molecular sieve pores out of the discharge to the atmosphere. In this way, the two towers take turns to complete the separation of nitrogen and oxygen, continuous output of nitrogen, variable pressure (_bian4 ya1) adsorption nitrogen purity of 95%-99.9%, if you need a higher purity of nitrogen need to increase the nitrogen purification equipment. Variable pressure adsorption nitrogen machine output of 95%-99.9% nitrogen into the nitrogen purification equipment, while adding the appropriate amount of hydrogen through a flow meter, in the purification equipment in the oxygen removal tower hydrogen and nitrogen in the trace oxygen catalytic reaction to remove oxygen and then cooled by the water condenser, vapor separator to remove water, and then through the dryer depth drying removal.

 KDON (Ar)-18000/36000-600 BANGWIN Air separation plant was designed, manufactured and installed; good results have been achieved in production and management, and both production efficiency and energy consumption have been well received by users.

Our process flow 1,Methane + pure oxygen burn to generate CO2 and H2，O22,Then remove water3,Then lower the temperature of CO2 for preliminary liquefaction4,Then distill to obtain high-purity liquid CO25,Then store in liquid CO2 storage tank for future use
