Carbon Dioxide Storage Tank – Cryogenic Liquid CO2 Storage Tanks Manufacturer & Supplier

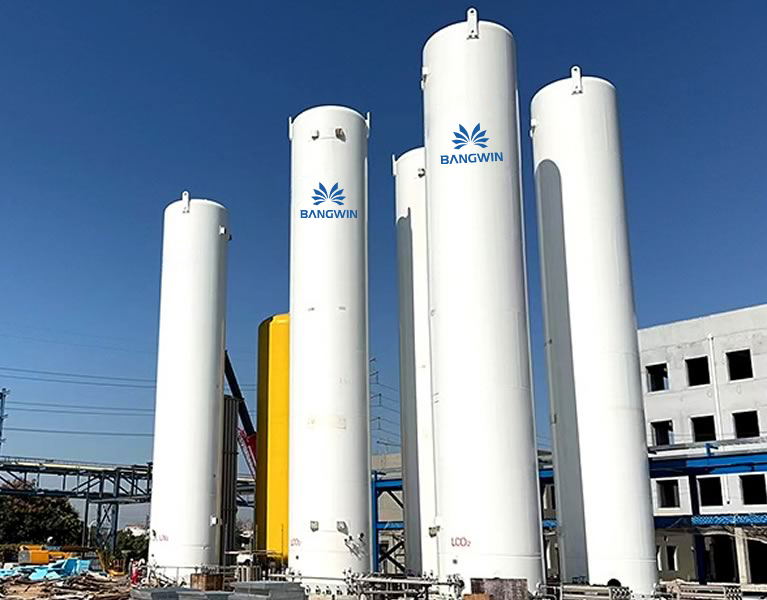

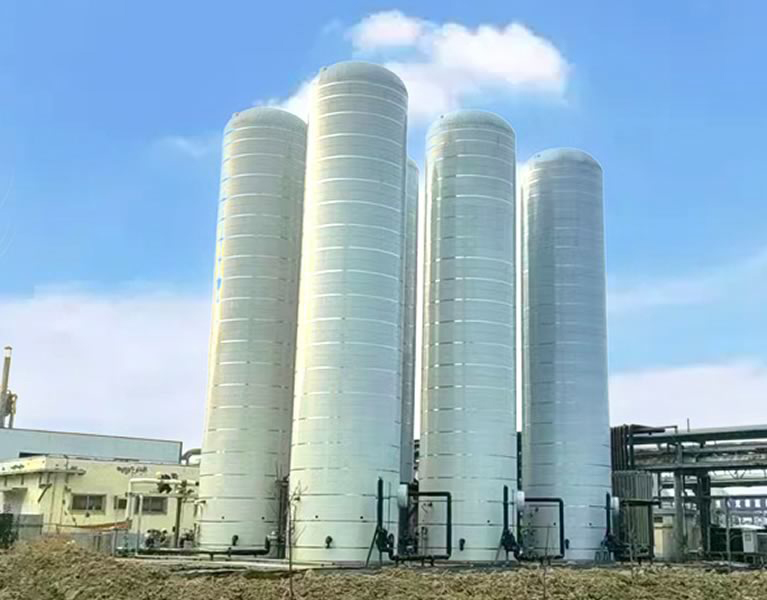

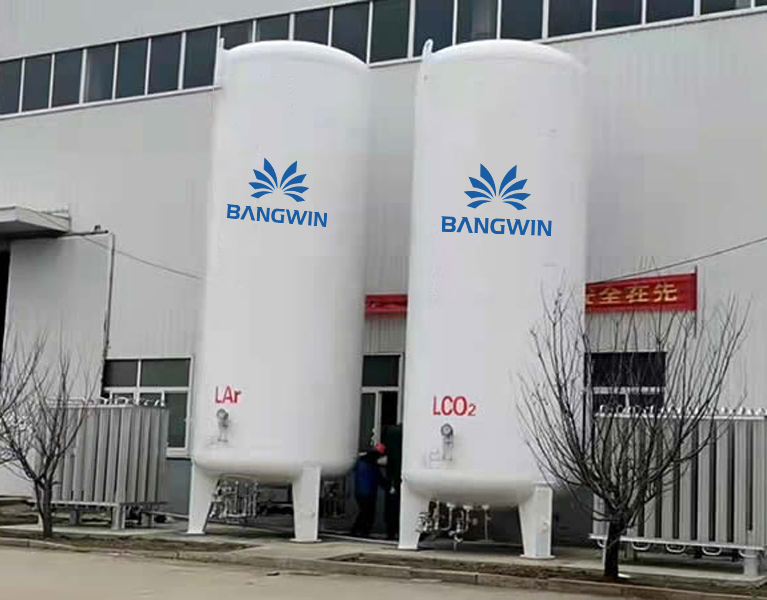

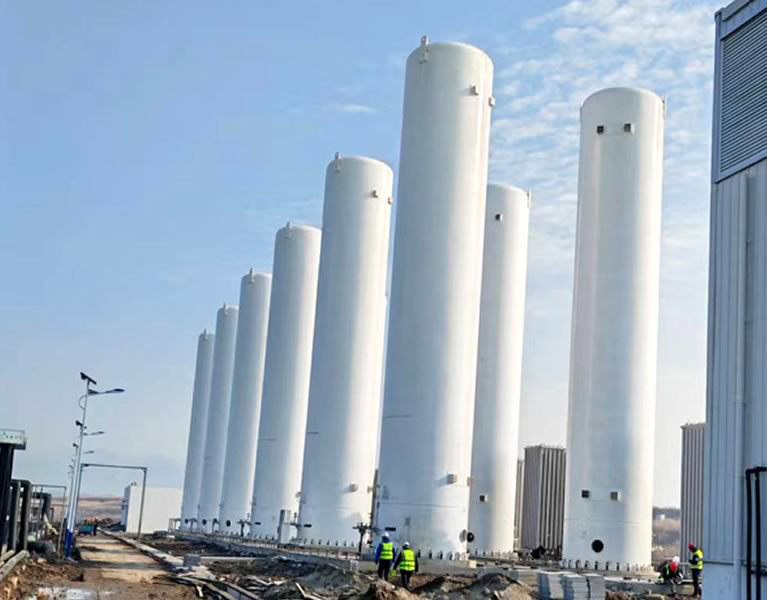

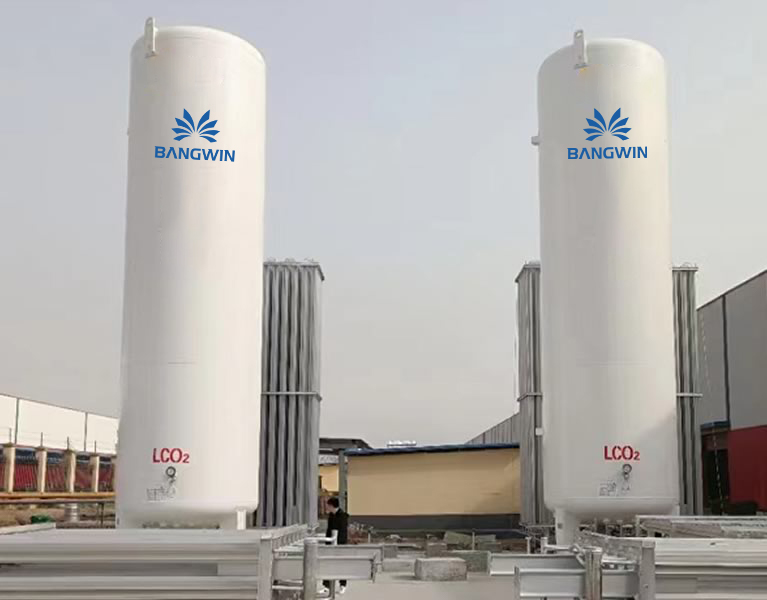

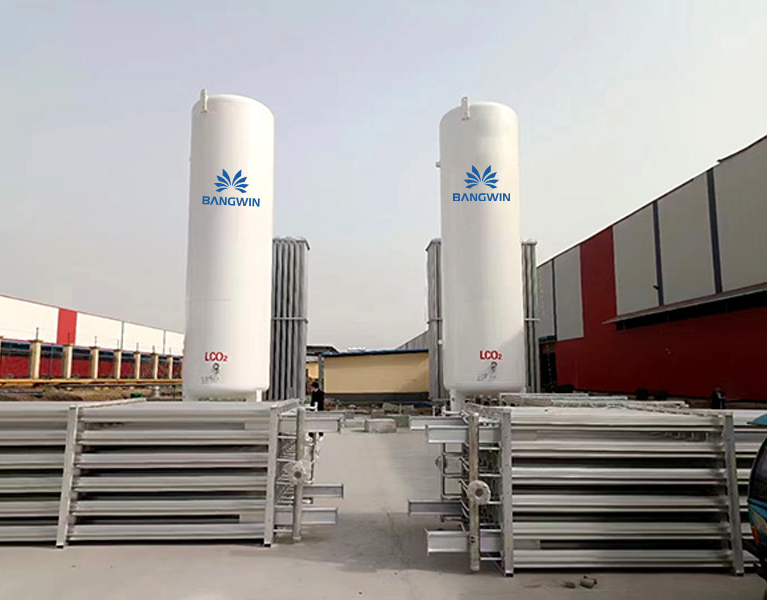

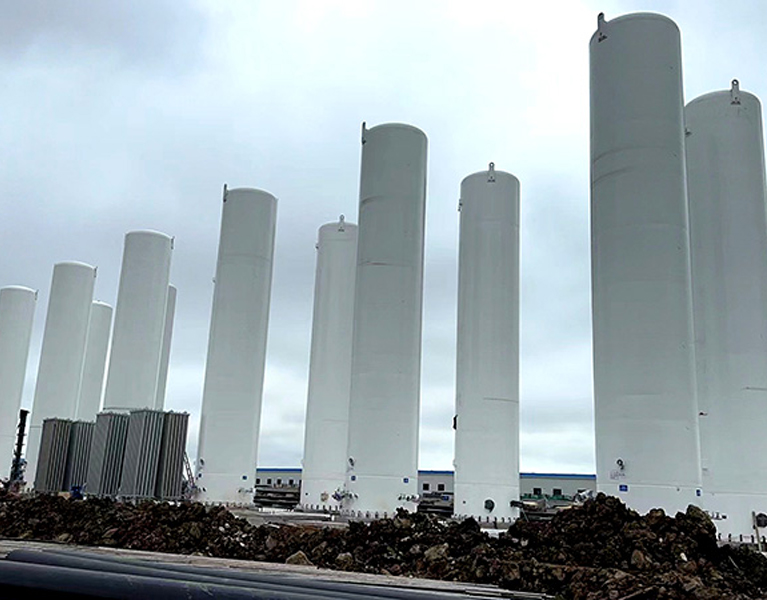

Cryogenic storage tanks are vertical or horizontal double-layered vacuum insulated tanks. The inner liner is made of austenitic stainless steel, and the outer container material is selected according to national regulations, such as Q235-B or 345R, depending on the user's region. The sandwich between the inner and outer containers is filled with perlite insulation material and evacuated. They are widely used in the electronics, chemical, petroleum, and glass industries.

  • Brand:

    BANGWIN
  • Product origin:

    China
  • Lead Time:

    90
  • Product Detail

Technical parameters



LCO2 Storage Tank
Serial Number Specifications Dimensions Weight (Kg) Remarks
1 CFL-5/2.16 φ1916×5262 4800 Support
2 CFL-10/2.16 φ2316×5900 7000 Support
3 CFL-15/2.16 φ2416×7202 9600 Support
4 CFL-20/2.16 φ2616×7629 12000 Support
5 CFL-30/2.16 φ2916×8546 16700 Support
6 CFL-40/2.16 φ3016×10180 21200 Support
7 CFL-50/2.16 φ3016×12150 25200 Support
8 CFL-60/2.16 φ3016×14550 29200 Support
9 CFL-80/2.16 φ3520×13419 41900 Support
10 CFL-100/2.16 φ3520×16169 49700 Support
11 CFL-150/2.16 φ3724×21090 72400
    • #
    • #
    • #
    • #
    • #
    • #
    • #
    • #





    Product Advantages



    Material Advantages:

    The raw materials are sourced from leading companies in the industry, ensuring stable and reliable quality. This effectively reduces the number of longitudinal and circumferential welds and end cap splicing welds. Only burrs need to be trimmed from the cylinder body, resulting in no large waste, improving material utilization and guaranteeing product quality.



    The standard carbon steel submerged arc welding wire and flux used are Lincoln welding wire and flux from the USA, ensuring stable and reliable welding quality and an aesthetically pleasing appearance.



    Two types of paint are available: domestic and imported. Both offer a beautiful finish and excellent weather resistance.



    Processing capabilities and technological advantages:



    1. Laser cutting ensures high precision with an error within 0.05 mm, guaranteeing welding quality; heat exchanger baffles can be directly laser-cut.



    2. For stainless steel longitudinal and circumferential welds ≤10 mm thick, plasma welding is used, with single-sided welding and double-sided forming, reducing welding wire consumption. Compared to submerged arc welding, it eliminates the need for carbon arc gouging, avoiding carburization, resulting in a beautiful appearance, low heat input, and excellent weld quality. Radiographic testing pass rate is over 99%.



    3. Argon arc automatic welding machine provides high and stable welding quality and a beautiful weld appearance.



    Advantages of a professional, assembly-line production model:



    Product manufacturing is divided into more than a dozen processes, including material cutting, head pressing, rolling, longitudinal and circumferential welding, assembly welding, machining, heat treatment, hydrostatic testing, sandblasting, and painting. Each process is equipped with professional personnel, and there is a secondary division of labor within each process, which effectively improves work efficiency and product quality.

    • #
    • #
    • #
    • #
    • #
