New Arrival Carbon Dioxide Powered Breaking System High Pressure Rock Removal Carbon Dioxide Powered Breaking Machine

The Carbon Dioxide Mining Device is a novel equipment used in various mining operations, quarrying for rock splitting, and extracting coal mine gas, serving as an alternative to explosive blasting.

  • Brand:

    BANGWIN
  • Product origin:

    China
  • Product Detail



Constructed with high-strength metal tubes made of 16MuDr alloy, the Carbon Dioxide Mining Device is pressurized with liquid carbon dioxide at over 7.35 MPa within the tubes. Equipped with components such as a gasification heating device and a pressure-regulated blasting mechanism at the tube end, this device operates by activating the gasification heating device through a low-pressure mining intrinsically safe detonator. This process rapidly expands the liquid carbon dioxide within the metal tube into carbon dioxide gas, increasing its pressure several hundred times within 4 milliseconds. As a result, the main pipe of the mining device experiences a sudden increase in pressure, breaking through the pressure-regulated blasting mechanism to release the gas through the vent holes at high energy levels. This effectively displaces the blasted materials, achieving the desired effect of rock splitting, quarrying, and coal extraction.

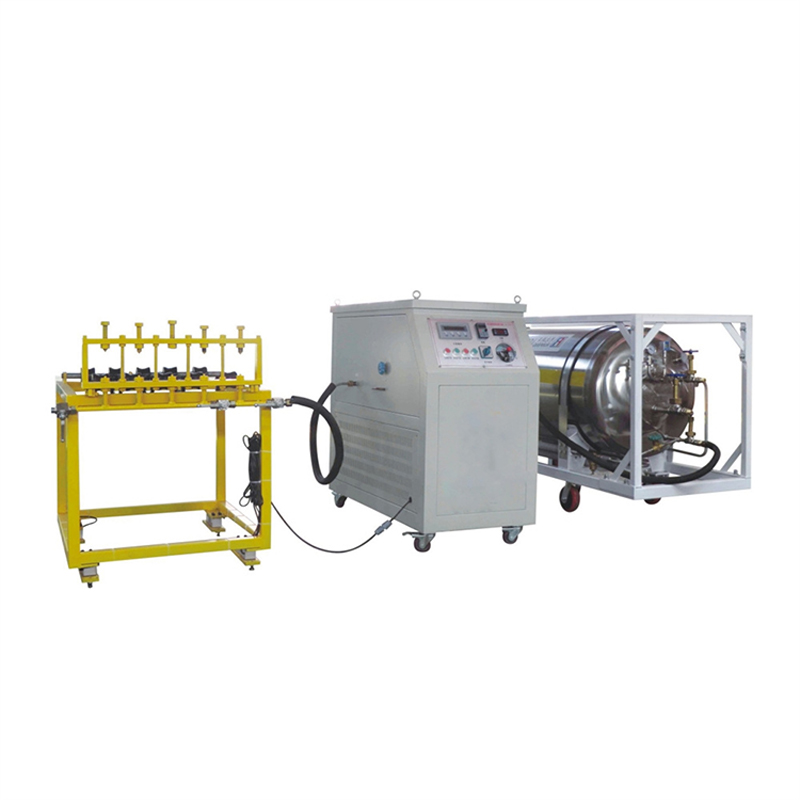

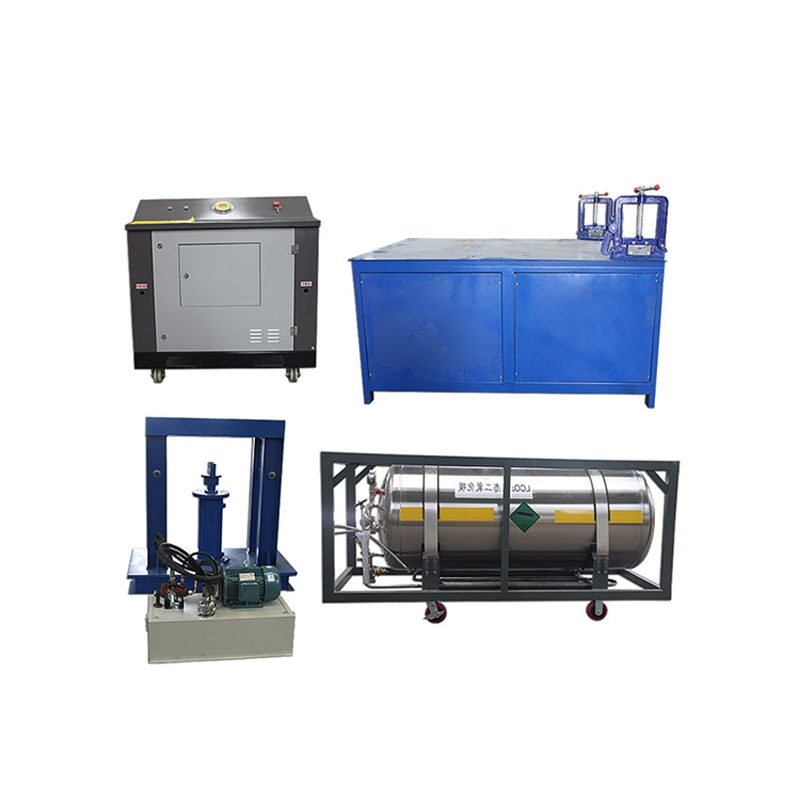

Carbon Dioxide Fracturing Equipment Full Set Components Table
No.
Category
Name
Quantity
Remarks
1
Main Equipment
Liquid Storage Pipe
50 sets
1M/0.8m
2
Filling Valve
Supporting
3
Release Head
2 holes
4
Stop Cones
10 sets
-
5
Pulling Pipe
-
6
Consumables
Pressure Relief Plates
100 pieces
Consumable
7
Gaskets
Consumable
8
Heating Device
Consumable
9
Blasting Equipment
Either
Explosion-proof Initiator
1 piece
Intrinsically Safe
10
High-energy Initiator
1 piece
Non-coal Mines
11
Blasting Cord
2 reels
100M/reel
12
Charging System

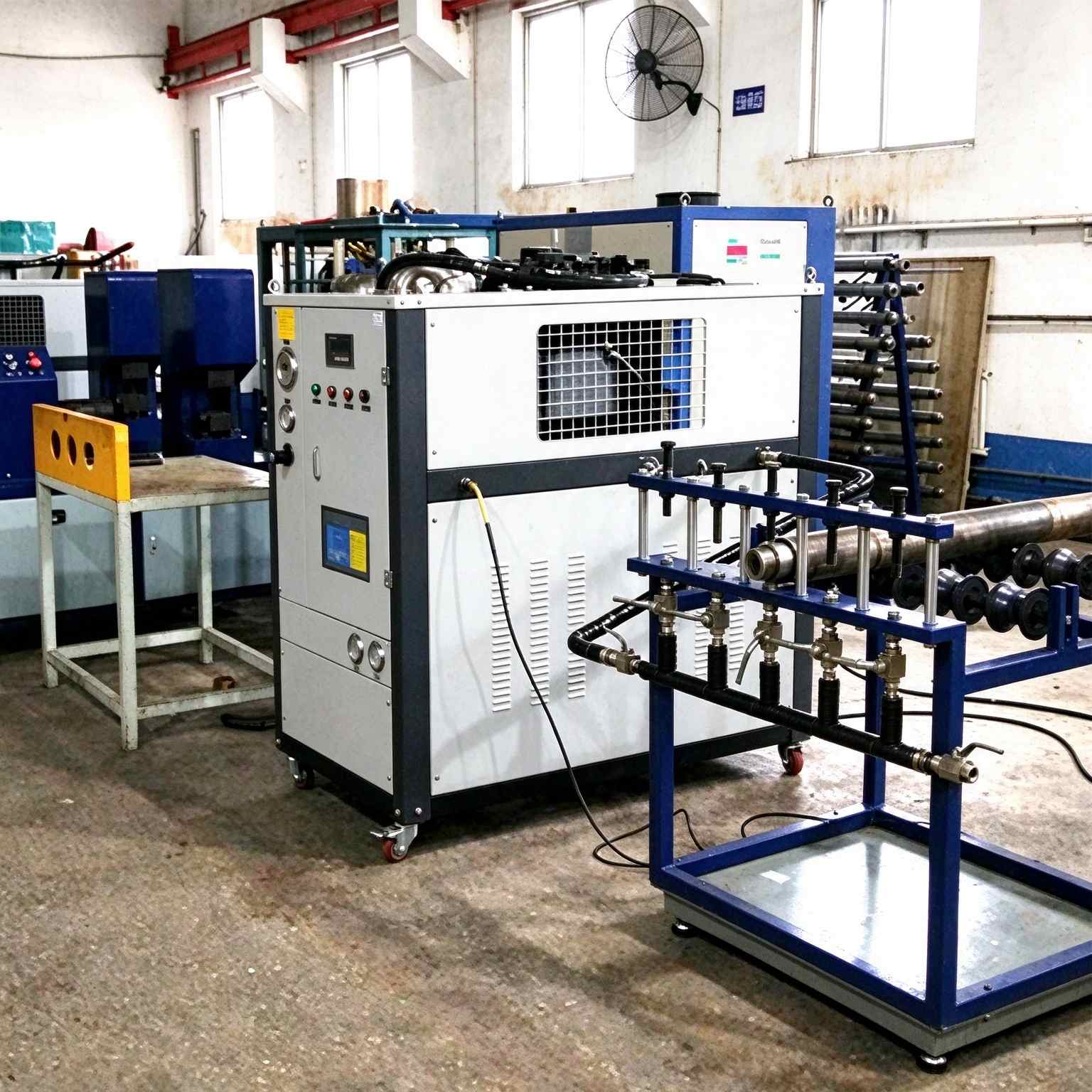

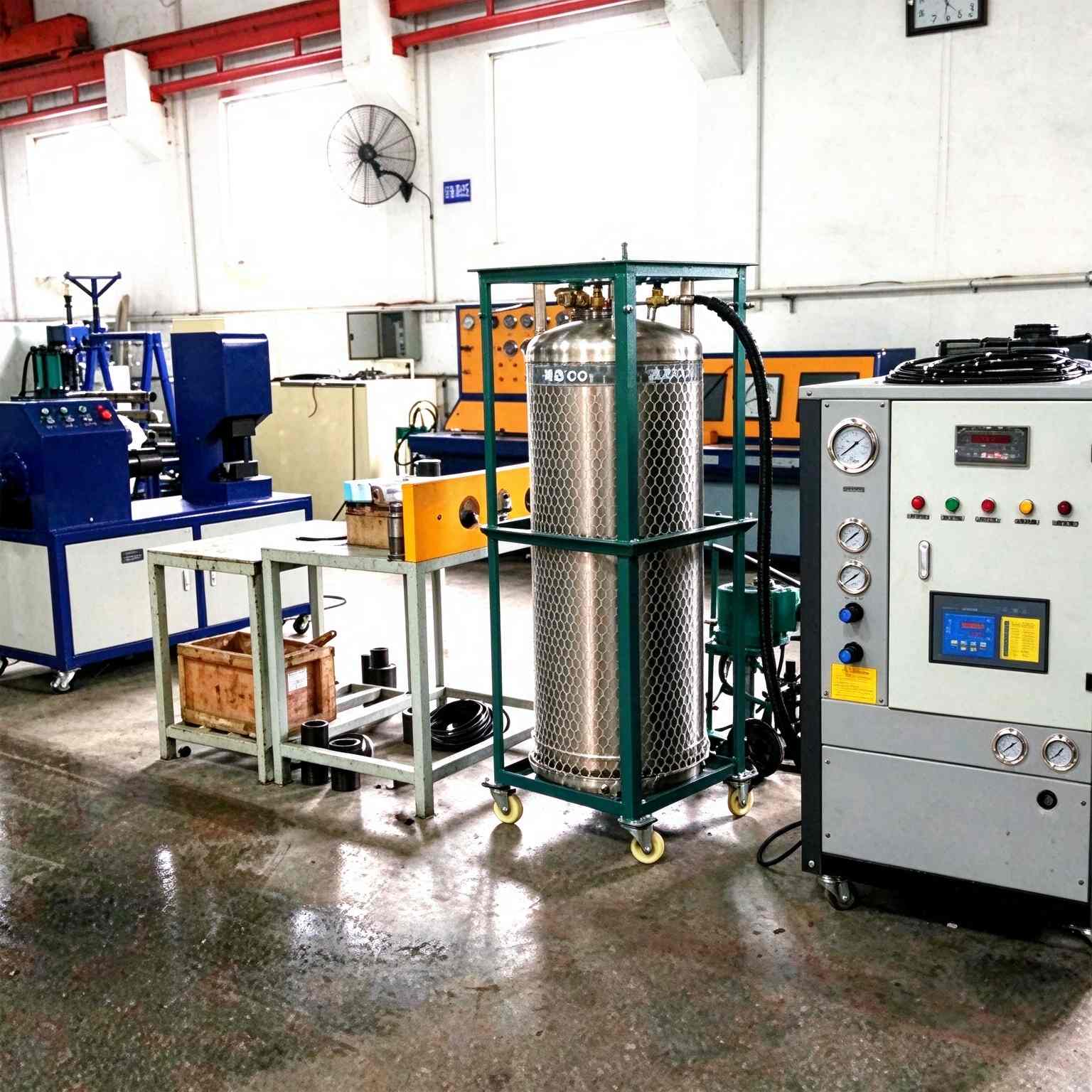

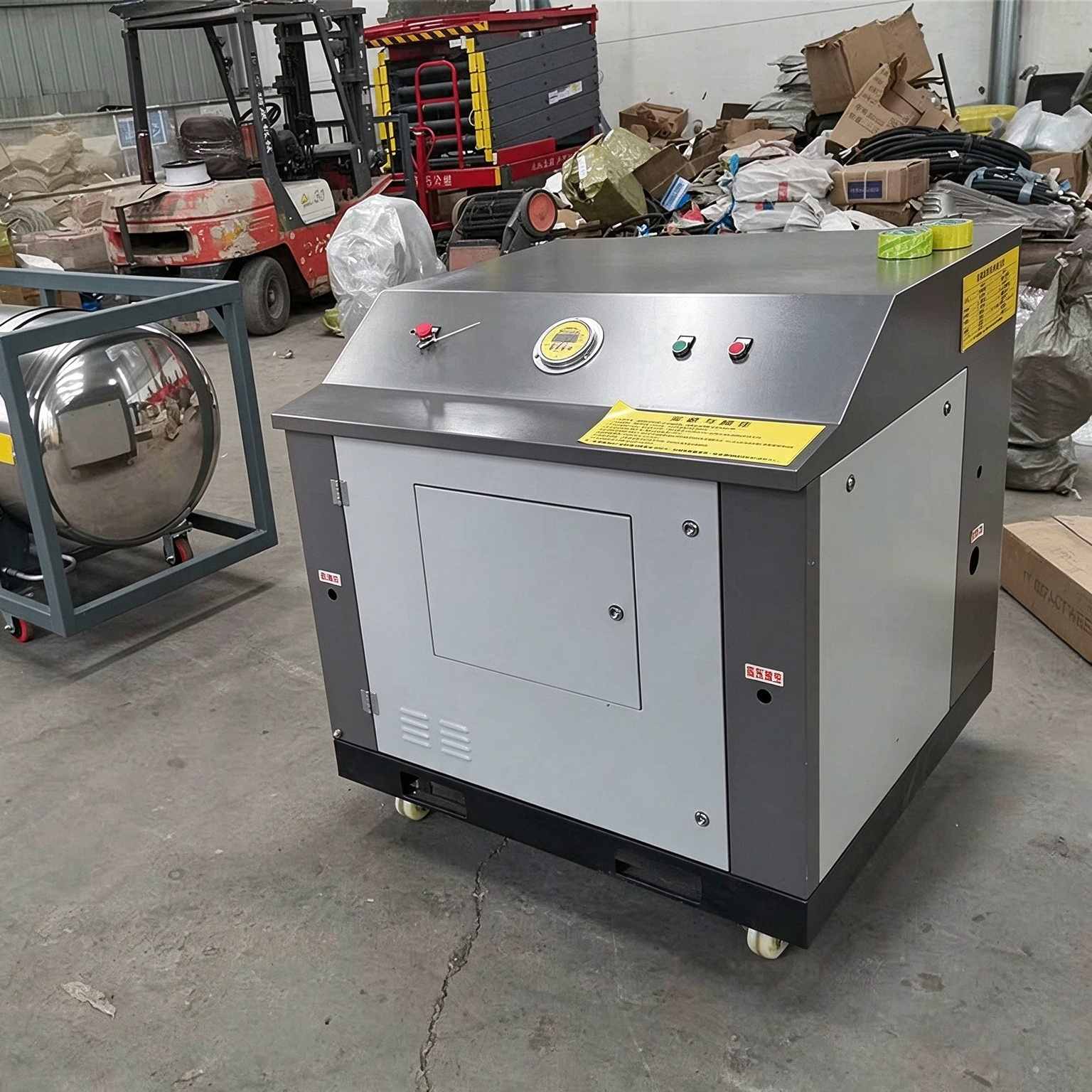

Charging Machine
1 set
Complete
13
Non-destructive Handling System

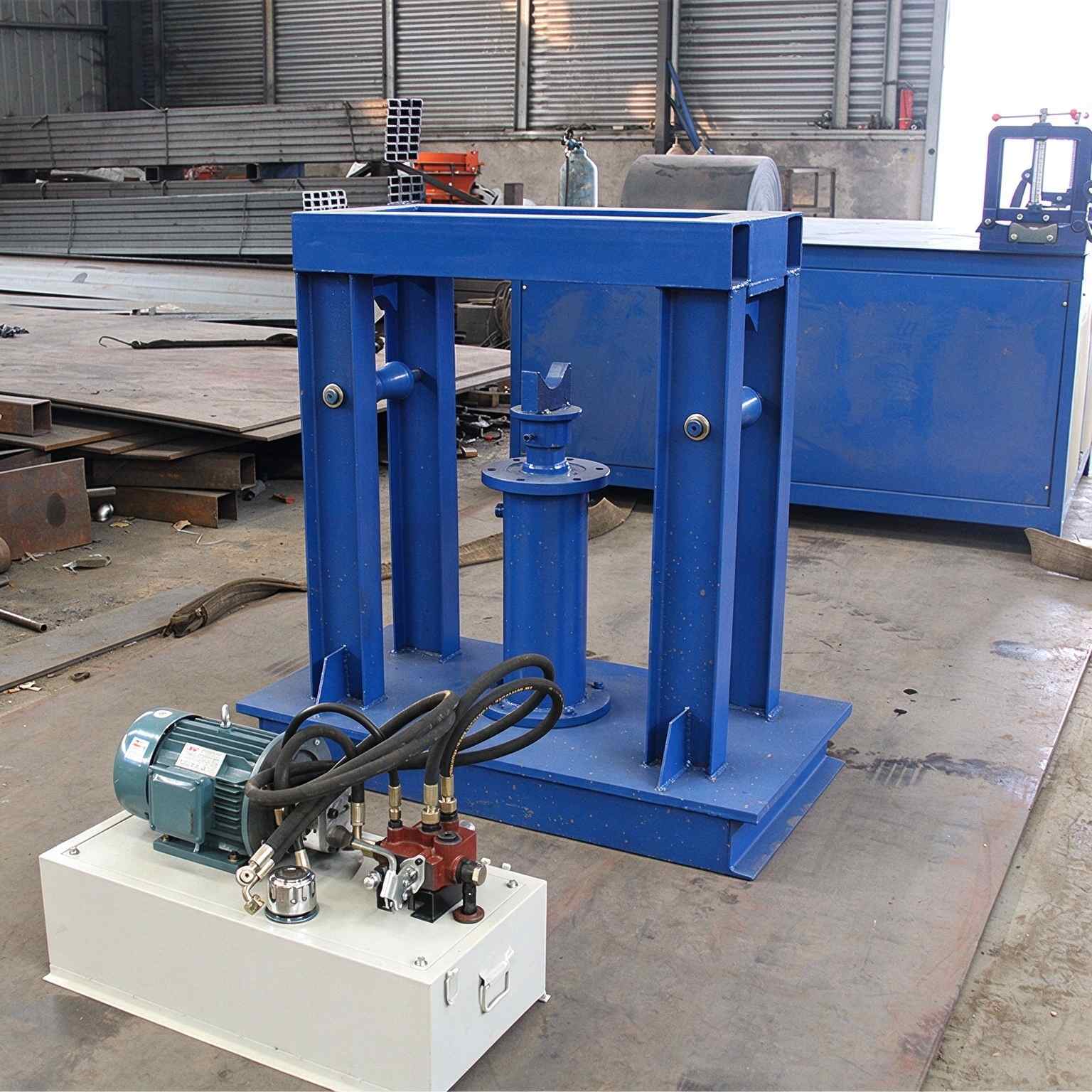

Disassembly Machine
1 set
Complete
14

Carbon Dioxide Storage Tank
1 set
Effective Volume 499L
15
Auxiliary Equipment
Tool Kit
1 set
Assembly Pliers, Hex Wrenches, Multimeter, etc.
16
Display Rack
1 unit
-
17
Simple Hoisting Equipment
1 set
-
