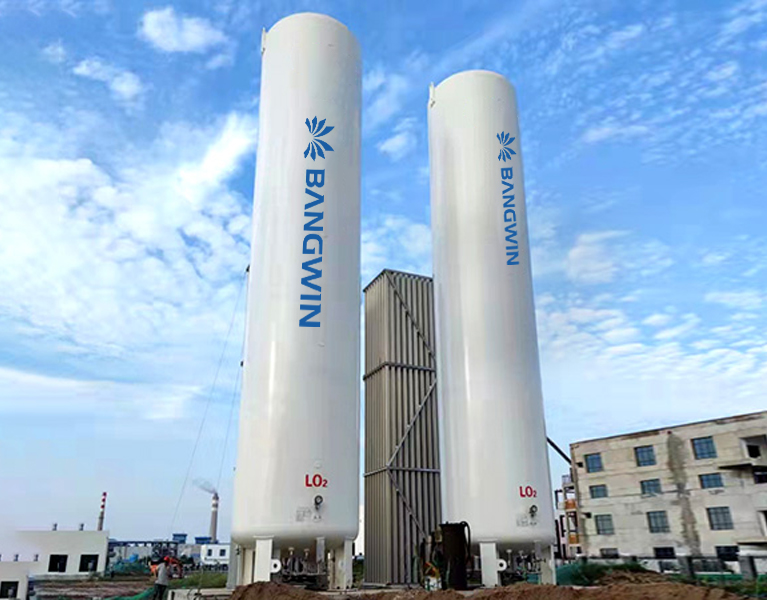

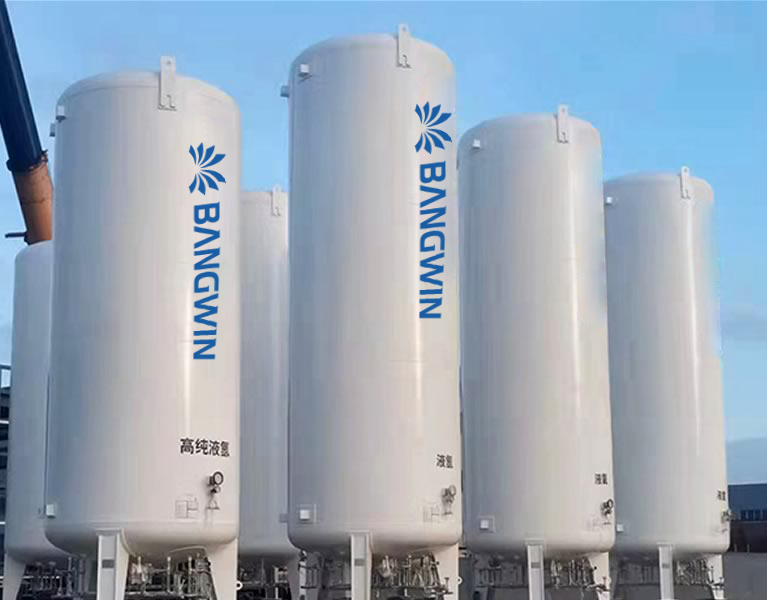

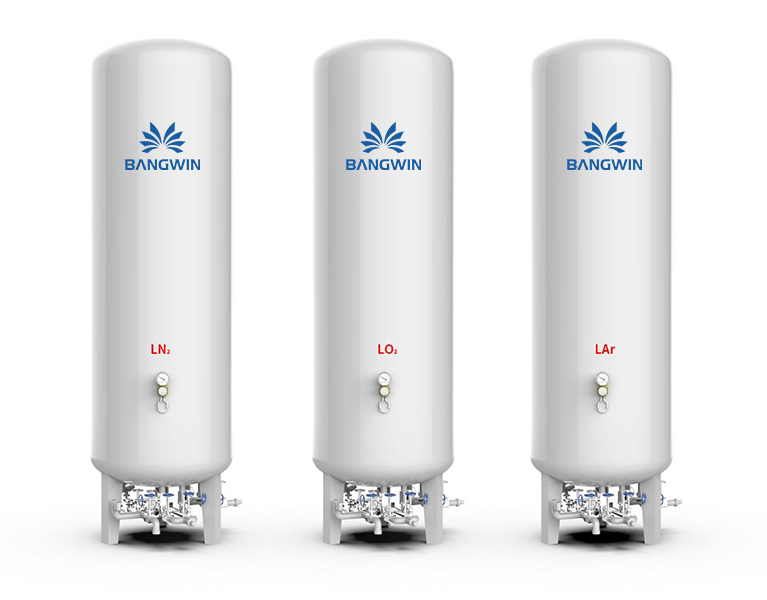

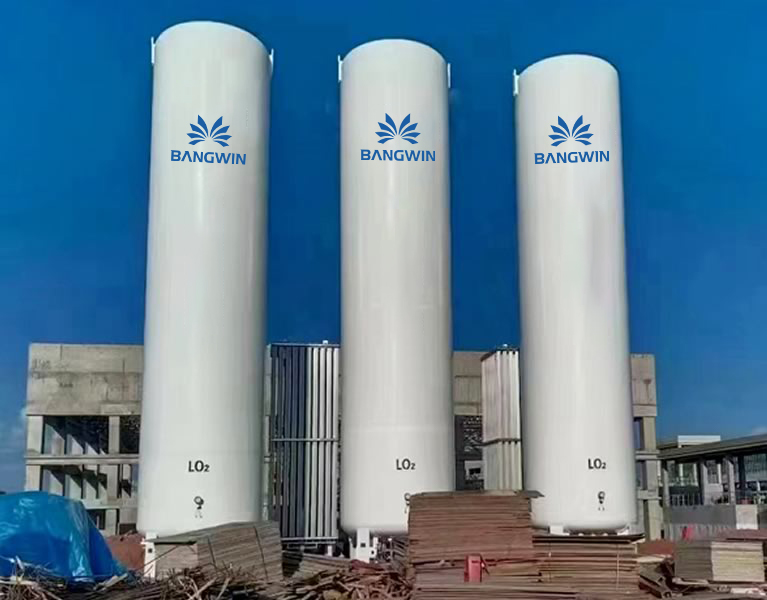

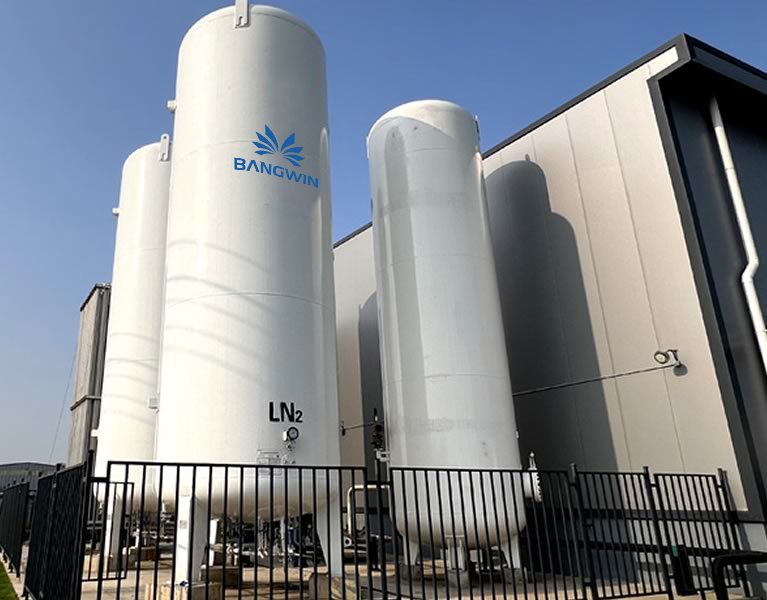

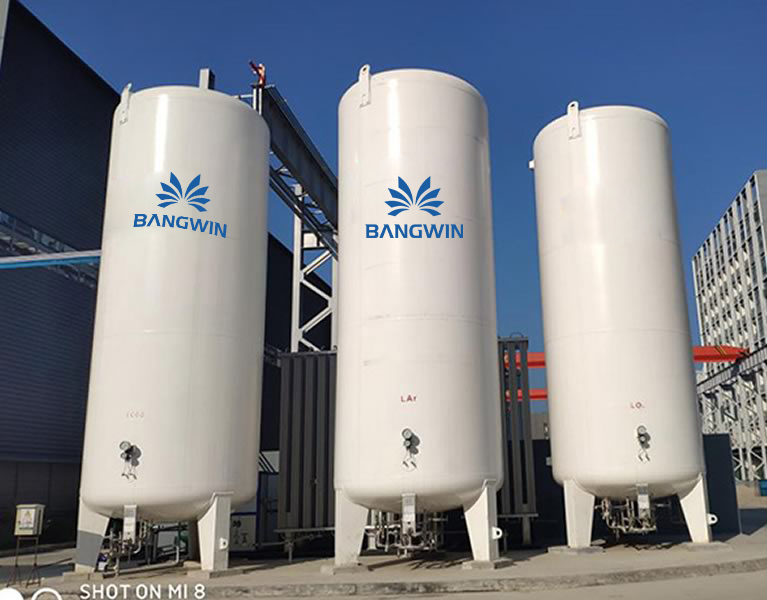

Cryogenic storage tanks are vertical or horizontal double-layered vacuum insulated tanks. The inner liner is made of austenitic stainless steel, and the outer container material is selected according to national regulations, such as Q235-B or 345R, depending on the user's region. The sandwich between the inner and outer containers is filled with perlite insulation material and evacuated. They are widely used in the electronics, chemical, petroleum, and glass industries.
Brand:
BANGWINProduct origin:
ChinaLead Time:
90Product System Diagram
Technical parameters
| Oxygen, Nitrogen and Argon Storage Tanks | ||||
| Serial Number | Specifications | Dimensions | Weight (Kg) | Remarks |
| 1 | CFL-5/0.8 | φ1916×5172 | 3930 | Support |
| 2 | CFL-5/1.6 | φ1916×5172 | 4380 | Support |
| 3 | CFL-10/0.8 | φ2316×5981 | 5840 | Support |
| 4 | CFL-10/1.6 | φ2316×5981 | 6600 | Support |
| 1 | CFL-15/0.8 | φ2316×7735 | 7650 | Support |
| 2 | CFL-15/1.6 | φ2316×7735 | 8800 | Support |
| 3 | CFW-20/0.8 | φ2974×7125 | 8950 | Support |
| 4 | CFL-20/0.8 | φ2716×7097 | 8900 | Support |
| 5 | CFL-20/1.6 | φ2716×7097 | 10650 | Support |
| 6 | CFL-30/0.8 | φ2916×8554 | 12400 | Support |
| 7 | CFL-30/1.2 | φ2916×8554 | 14100 | Support |
| 8 | CFL-30/1.6 | φ2916×8584 | 14800 | Support |
| 9 | CFL-40/0.8 | φ2916×10840 | 15400 | Support |
| 10 | CFL-50/0.8 | φ3220×10724 | 18200 | Support |
| 11 | CFL-50/1.6 | φ3220×10724 | 24500 | Support |
| 12 | CFL-80/0.8 | φ3420×14280 | 30000 | Support |
| 13 | CFL-100/0.8 | φ3420×17312 | 35700 | Support |
| 14 | CFL-100/1.6 | φ3520×16526 | 45600 | Support |
| 15 | CFL-150/0.8 | φ3724×21148 | 52300 | Support |
| 16 | CFL-200/0.8 | φ4024×22995 | 67000 | Skirt |
-
Product Advantages
Material Advantages:
The raw materials are sourced from leading companies in the industry, ensuring stable and reliable quality. This effectively reduces the number of longitudinal and circumferential welds and end cap splicing welds. Only burrs need to be trimmed from the cylinder body, resulting in no large waste, improving material utilization and guaranteeing product quality.
The standard carbon steel submerged arc welding wire and flux used are Lincoln welding wire and flux from the USA, ensuring stable and reliable welding quality and an aesthetically pleasing appearance.
Two types of paint are available: domestic and imported. Both offer a beautiful finish and excellent weather resistance.
Processing capabilities and technological advantages:
1. Laser cutting ensures high precision with an error within 0.05 mm, guaranteeing welding quality; heat exchanger baffles can be directly laser-cut.
2. For stainless steel longitudinal and circumferential welds ≤10 mm thick, plasma welding is used, with single-sided welding and double-sided forming, reducing welding wire consumption. Compared to submerged arc welding, it eliminates the need for carbon arc gouging, avoiding carburization, resulting in a beautiful appearance, low heat input, and excellent weld quality. Radiographic testing pass rate is over 99%.
3. Argon arc automatic welding machine provides high and stable welding quality and a beautiful weld appearance.
Advantages of a professional, assembly-line production model:
Product manufacturing is divided into more than a dozen processes, including material cutting, head pressing, rolling, longitudinal and circumferential welding, assembly welding, machining, heat treatment, hydrostatic testing, sandblasting, and painting. Each process is equipped with professional personnel, and there is a secondary division of labor within each process, which effectively improves work efficiency and product quality.
